Spout Jet Diffuser Air Ceiling Aluminum Jet Nozzle Diffuser
Central Air Conditioning Aluminum Air Diffuser Jet Nozzle Diffuser The jet diffusers, type JD, are especially developed
Send your inquiryDESCRIPTION
Basic Info
Model NO. | JD-VB |
Shape | Ball |
Color | White/Anodized/Other Colors |
Function | Air Cooling |
Payment Term | T/T |
Size | Customerized/ Standard |
Weight | 0.1-0.3 |
Surface Finished | Smooth/ Matt/ Mill Finish |
Transport Package | Carton |
Specification | powder coating |
Trademark | Ventech |
Origin | China |
HS Code | 7616999000 |
Production Capacity | 10000/Month |
Product Description

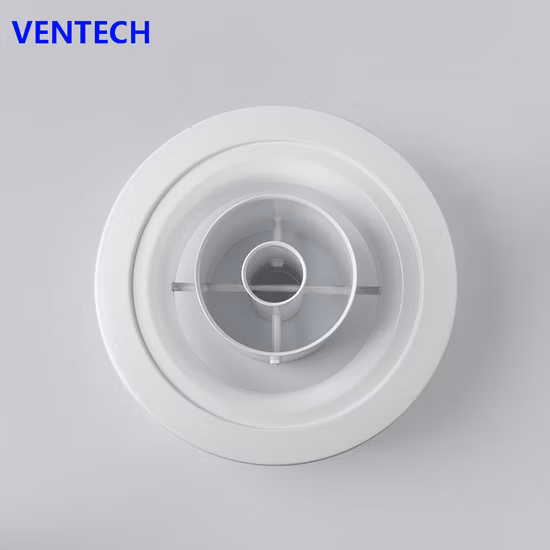

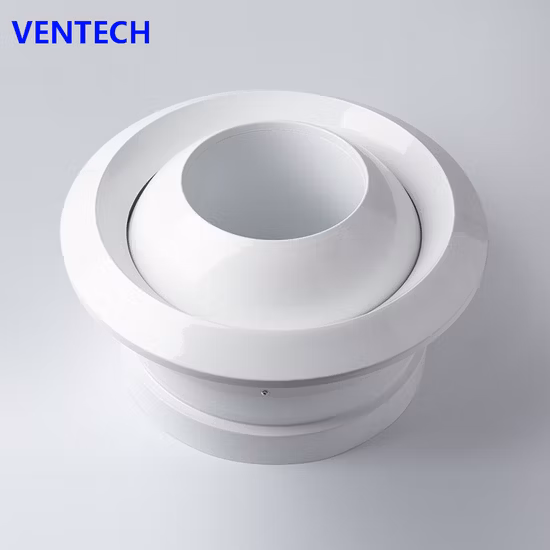

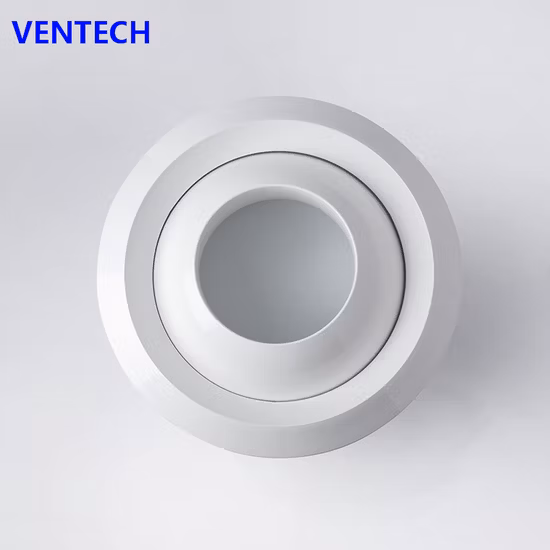

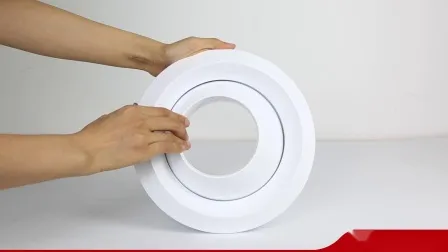

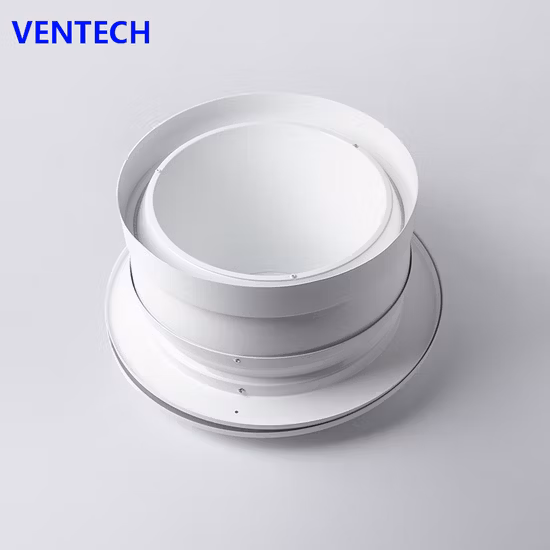

Central Air Conditioning Aluminum Air Diffuser Jet Nozzle Diffuser
The jet diffusers, type JD, are especially developed for large and high areas such as concert halls, theaters, galleries, airports, shopping centers, industrial plants etc. Through their aerodynamic design they ensure a reduced noise level and even a long throw at high outlet velocities. The ball jet diffuser can be installed for supplying air either horizontally or vertically. The ball jet nozzle can be adjusted in any direction within 30˚ from the centerline without affecting the airflow resistance or the sound pressure level.
Specification
1. Specially designed for large enclosures.
2. Long throw pattern with low velocity reduction.
3. Auto-balancing of the duct work due to units high pressure drop.
4. Directional air pattern; maximum deflection angle of 30° in all directions.
5. Circular duct connection with rubber gasket.
6. Corrosion resistant aluminium material. *The jet nozzle diffsuer is make of high quality aluminium sheet.*Jet diffuser are developed for large and high areas .such as concert halls ,theatres ,meseum ,airports ,shopping centers ect .*Because of their aerodynamic design ,they give a long throw of air flow even at high outlet velocities and reduced noise levels.*The jet can be adjusted over 360°.As these jet diffusers handle different supply temperatures ,the jet can be oriented upwards or downwards (heating or cooling mode).
Drawing
Size (mm) | A | B | C | D |
160 | 145 | 80 | 115 | 160 |
200 | 195 | 100 | 160 | 220 |
250 | 245 | 125 | 215 | 260 |
315 | 310 | 162 | 255 | 320 |
400 | 395 | 200 | 345 | 410 |
